XENA 5.0
ATV ROBOT

XENA 5.0
ATV ROBOT

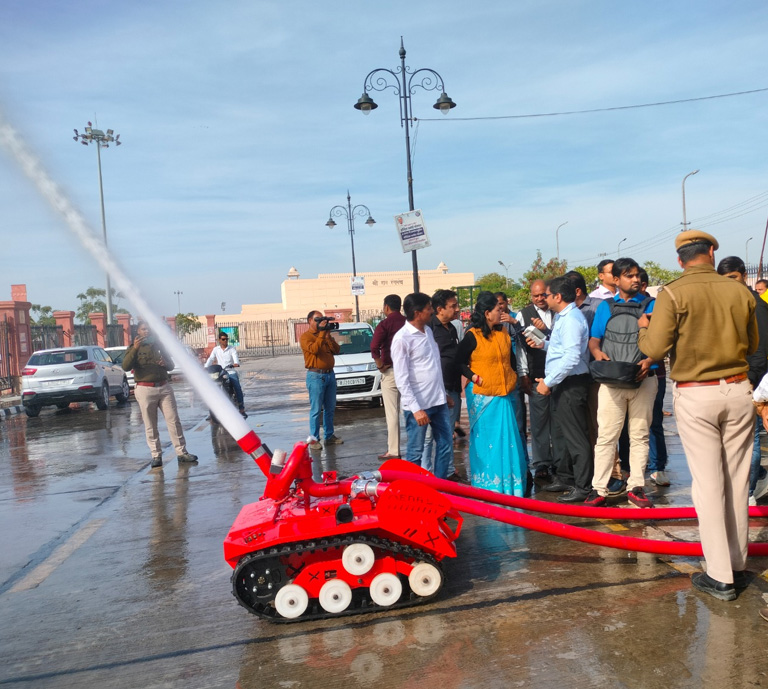

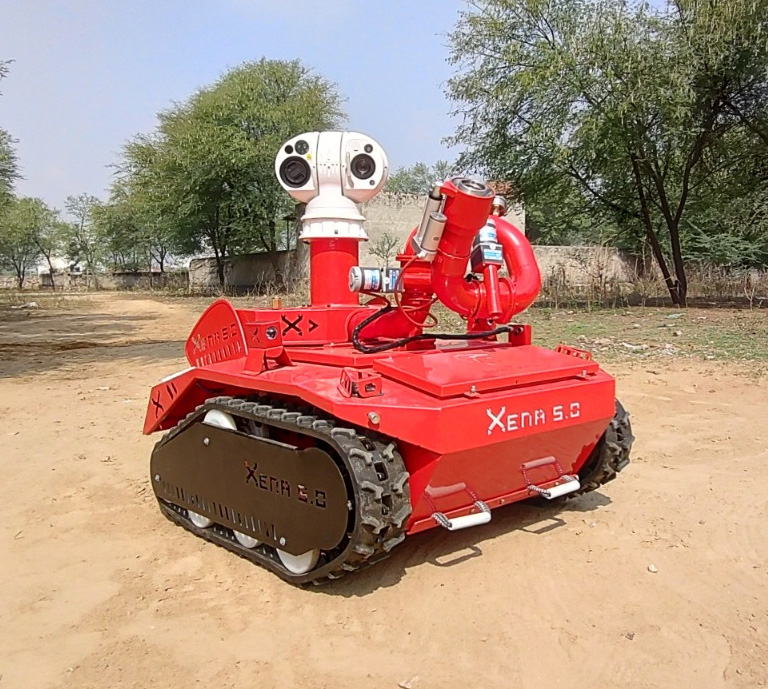

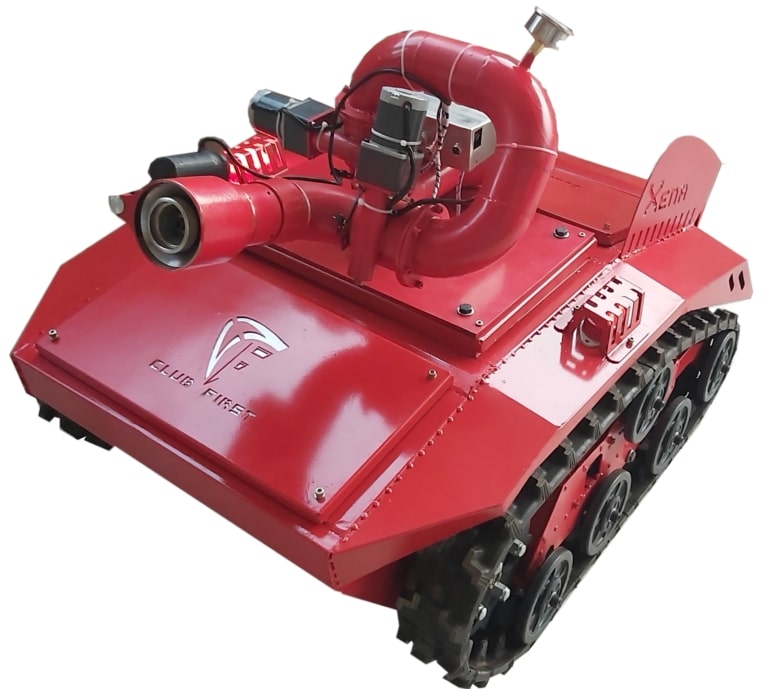

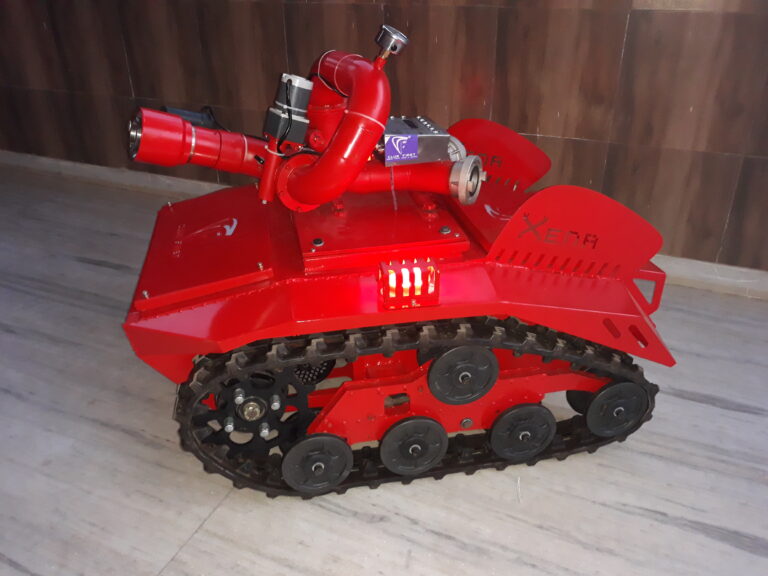

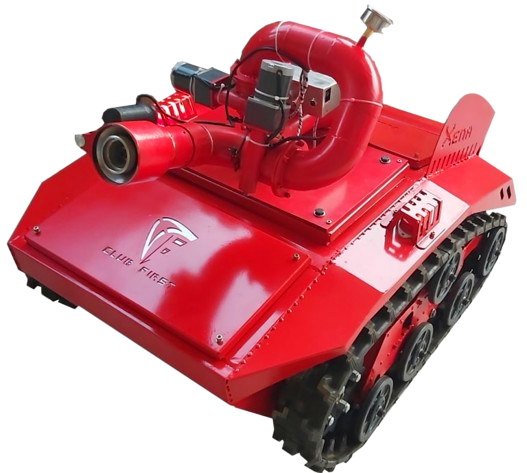

XENA 5.0 ROBOT ATV is an innovative mobile robotic platform with a camera and monitor designed for fire fighting. It can be programmed to perform various tasks such as reconnaissance, fire detection, transport of equipment and personnel, search and rescue, and more. It is also equipped with a high-speed sensor to detect smoke and a scanner to detect the location of fire sources.

Applications: Disaster Management, Fire Fighting, Off Road Material Handling etc.

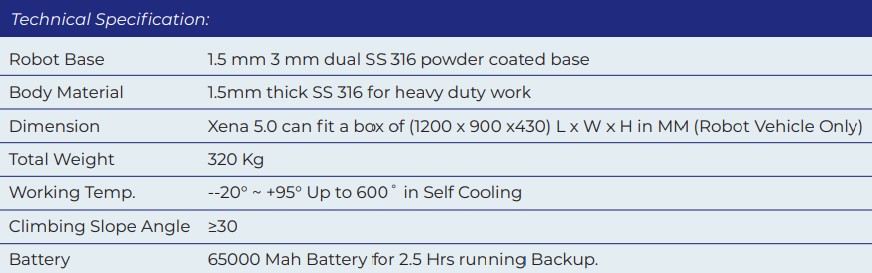

Specification:

RC Control ATV robotic platform with Camera & Monitor

  • Heat Proof, Water Proof
  • Smart Remote Operated fire monitor up to (3000 LPM)
  • Live Feed camera (Water Proof) (Thermal Camera Optional)
  • LCD on remote side for live video
  • Heavy Duty Work
  • Speed Up to 30 Km/h

Key Parameter:

The XENA ATV platform Robot Xena 5.0 have top speed 30 km/H

  • Compact Design for heavy duty work
  • Heavy Duty spiral iron core wire rubber Track
  • Track belt suspension
  • BLDC Heavy duty motors
  • Rc 300 Meter Range
  • Heat and over load protection
  • Efficiency Exhaust protection
  • 500 Kg Payload capacity
  • 500 Kg Drag capacity
  • Climb to possible stairs and elevations
  • Fast Charging system
  • All-terrain Vehicle Technology

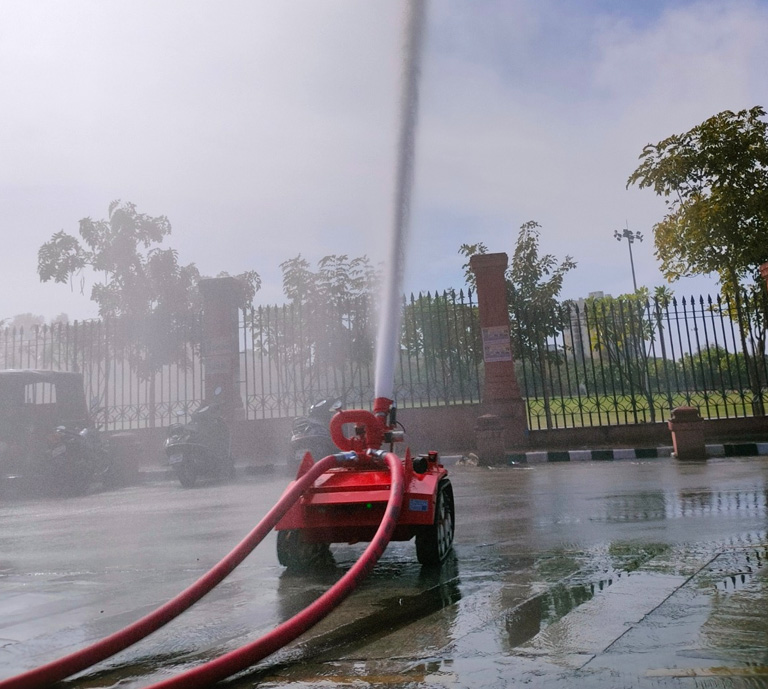

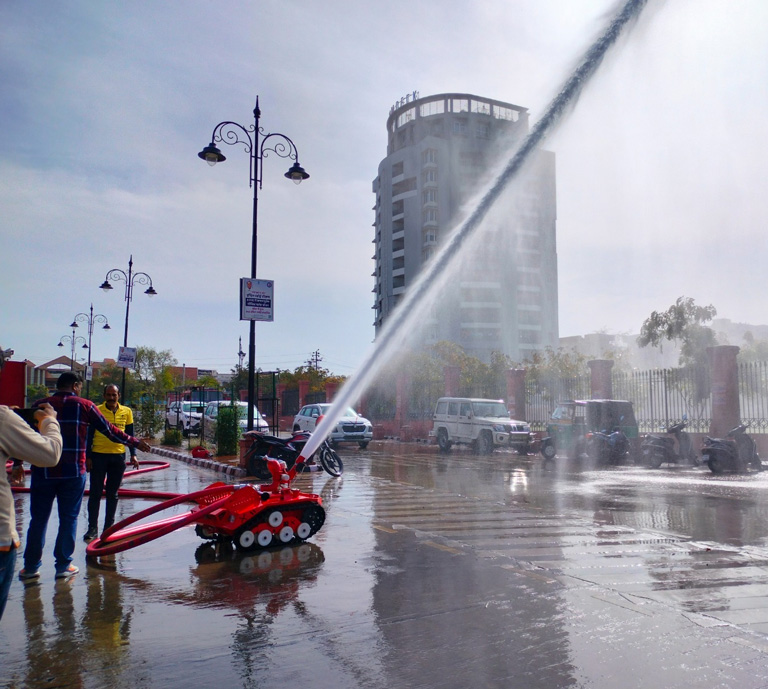

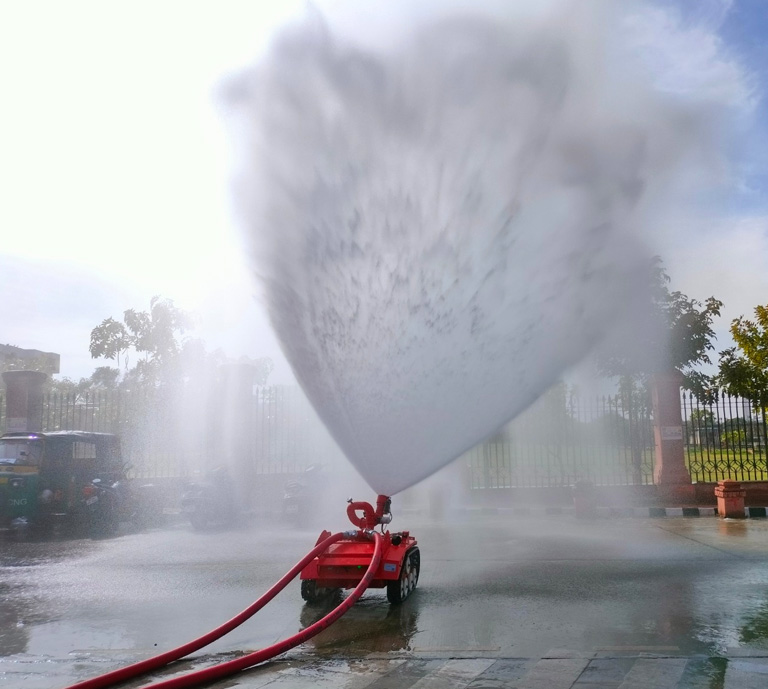

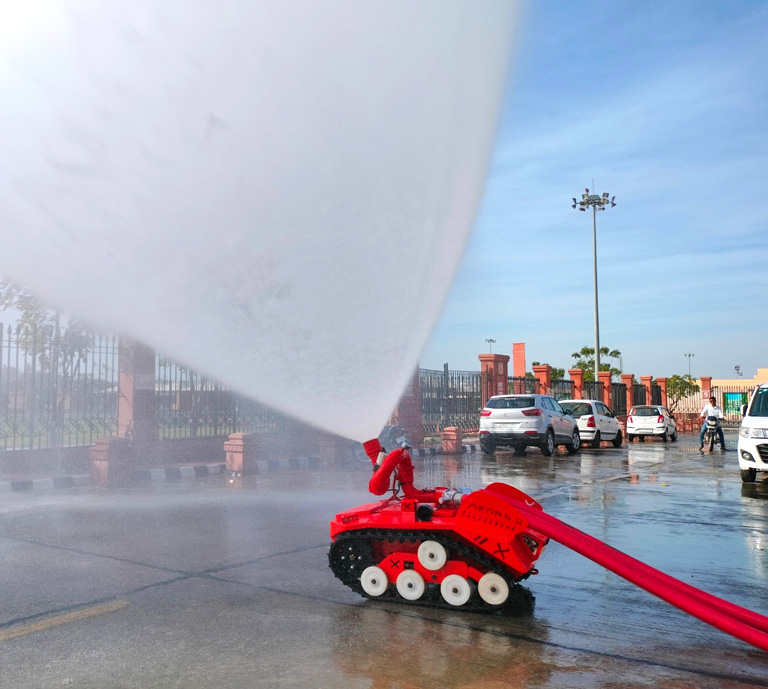

Fire Monitor:

  • Remote Controlled monitor 1800-3000LPM
  • Flow Cap @ Up to 7Kg/Cm2
  • Vertical Movement +35 to 80 Degree
  • Horizontal movement 350 Degree
  • Both ATV and Monitor controlled with single Remote controlled

Service:

  • 12 Months of Warranty for all spare parts including battery
  • Easy to replace spares make in India
  • Proper training to operato
  • Remote Service assistance and troubleshooting

Add on Accessories: Thermal Camera, Siren, Flash Lights, Two way audio, Structure attachments, Defense instruments etc.

Certifications:

Xena 5.0 Douse Fire At Delhi’s Ghazipur Landfill Site

A fire broke out at east Delhi’s Ghazipur landfill site on Monday after which a XENA 5.0 beside fire tenders was used to douse the blaze.
